35-lb. Center-Mount Drawer Slides – Centerline® 714 (14″ To 24″)

Original price was: $12.99.Current price is: $9.09.

SKU: CM9JA 22484 Categories: Center Mount Drawer Slides, Drawer Slides, Hardware

Discover a world of quality products.
Your satisfaction is 100% guaranteed.
Fast, friendly, always here to help.
Streamlined service, designed for your convenience.

Description
Reviews (0)

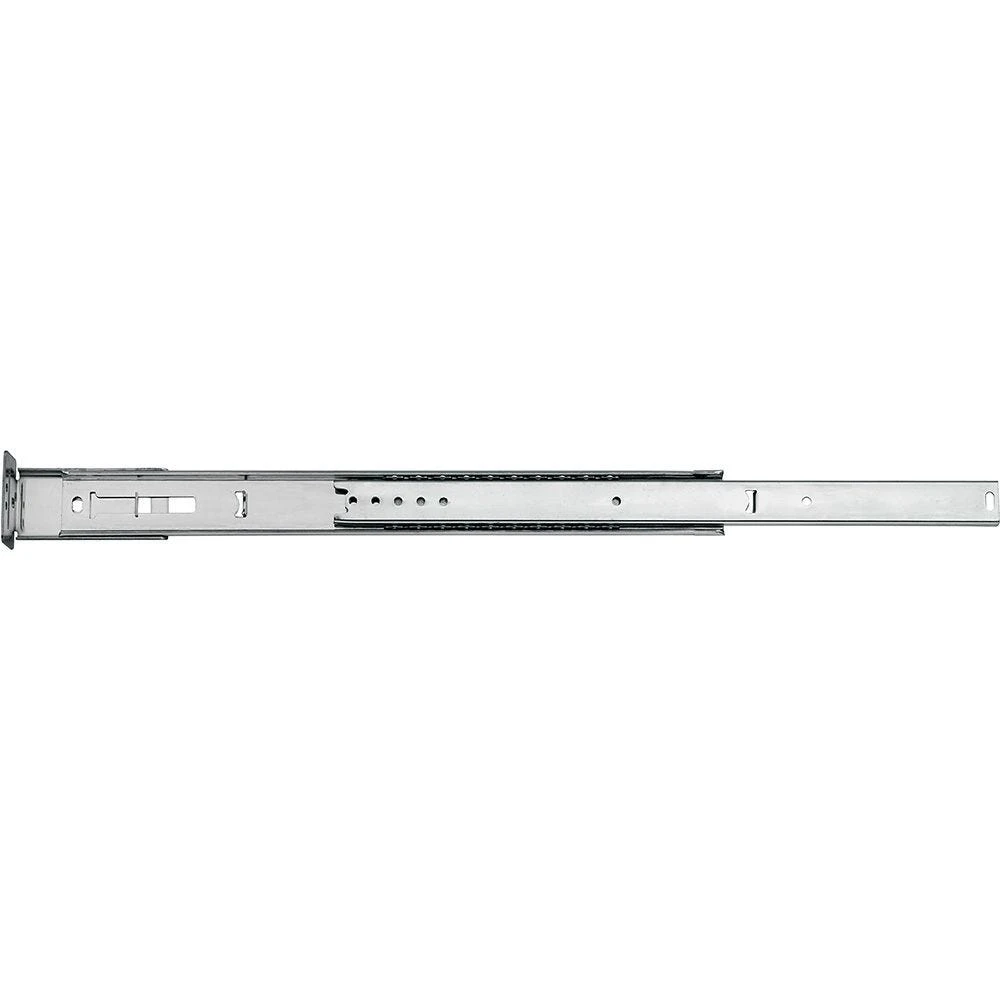

Maximize available cabinet drawer space by mounting this low profile (3/8″ thick) ball bearing center mount drawer slide beneath your face frame drawers. No hardware is visible on the drawer sides when the slide is extended. Rigid steel rails support up to 35 pounds. Offers 3/4 extension and stable, wobble-free movement.

Center Mount Drawer Slide Features:

Sold singly and includes rear mounting bracket, tack glides, installation instructions and mounting hardware
RoHS compliant, meeting the newest European and US ecological standard
Made from high grade steel with an attractive zinc finish
Center mount design saves space and provides a clean look
Tested to 50,000 cycles and backed by Rockler’s limited lifetime warranty
One drawer slide per pack (for one drawer).


Brand	Rockler Centerline®
Weight	1.490000

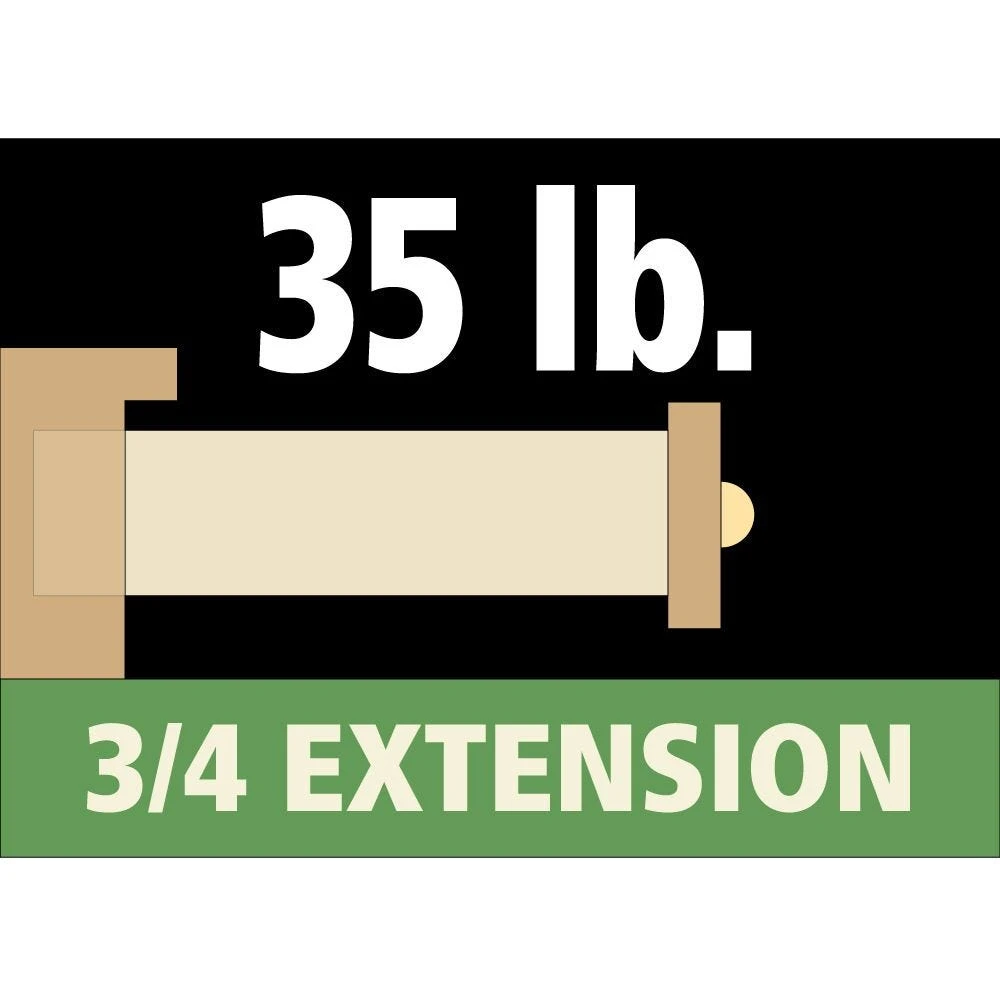

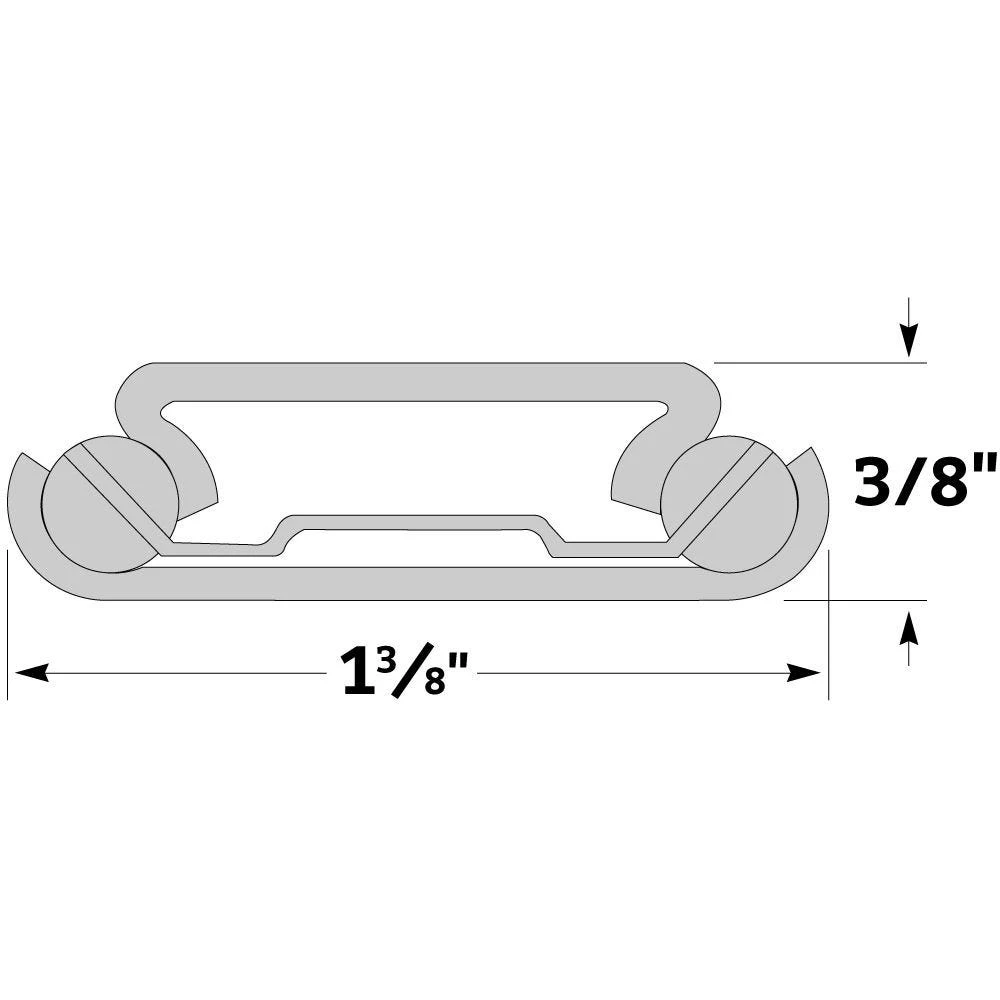

Tech Spec	Illustration depicts 35 lb. 3/4 extension slide Illustration depicts 3/8″ wide, 1-3/8″ long cross-section hinge. Motion: Standard Motion Disconnect: Friction Fit Disconnect Handed: Handed Maximum Drawer Slide Thickness: No Limit Required Side Clearance (Each Side): Required Drawer Bottom Recess: 1/4″ Face-Frame or Frameless Cabinets: Both Minimum Face-Frame Cabinet Depth With Rear Brackets: Length of slide Rockler Item # 47510 Slide Length: 14” Fits Drawer Lengths: 12” – 13.78” Fits Cabinet Depths: 13.8” – 15.75” Rockler Item # 47772 Slide Length: 16” Fits Drawer Lengths: 13.8” – 15.75” Fits Cabinet Depths: 15.95” – 17.72” Rockler Item # 45885 Slide Length: 18” Fits Drawer Lengths: 15.95” – 17.72” Fits Cabinet Depths: 17.9” – 19.68” Rockler Item # 48114 Slide Length: 20” Fits Drawer Lengths: 17.9” – 19.68” Fits Cabinet Depths: 19.88” – 21.65” Rockler Item # 49796 Slide Length: 22” Fits Drawer Lengths: 19.88” – 21.65” Fits Cabinet Depths: 21.85” – 23.62” Rockler Item # 44087 Slide Length: 24” Fits Drawer Lengths: 21.85” – 23.62” Fits Cabinet Depths: 23.82” – 25.6”
Slide Weight Rating	35 lbs.
Slide Extension	3/4 Extension
